Products: Two Stage Centrifugal
KI-TSC Two Stage Centrifugal
In our continuing efforts to provide the best product in the market, Keen Industrial Pump has enhanced the KI-TSC pump with the following features:
All castings upgraded to Ductile Iron, ASTM A-536-77, Grade D4512.- Doubling tensile strength to 65,000 psi from 30,000 psi.
- Enhanced bolt torque tightening capabilities
- Material test certification and traceability QC data.
- 50% finer finish compared to industry standard Ra 125 micro-inch.
- 700 psi, 750 deg F rating
- Excellent sealability, chemical resistance, creep relaxation
- Easily removable
- Enhanced protection for high pressure applications.
- Agricultural Spraying
- Car Wash
- OEM Deicing Equipment
- Booster Service
- Boiler Feed
- Irrigation
- Golf Course Sprinkling
Features and Benefits

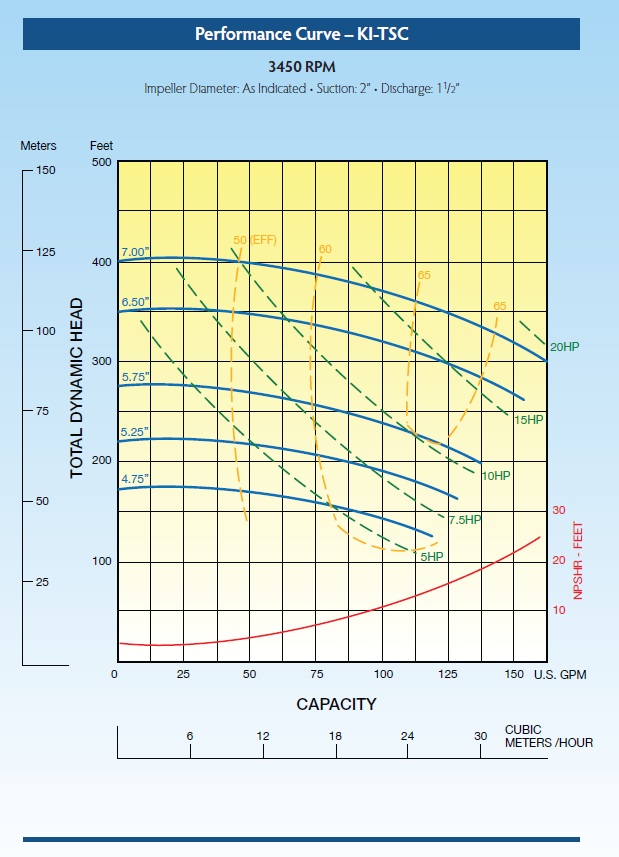

High Head Performance- 510 feet (220 psi) @ 4000 rpm
- 405 feet (175 psi) @ 3450 rpm
- 300 feet (130 psi) @ 3000 rpm
- High Tensile Strength Cast Iron Castings
- Balanced Bronze Impellers
- Bronze Wear Rings
- Silicon Carbide / Viton / Stainless Steel Shaft Seal
- Pump End Only (1¼” Keyed Shaft End)
- Frame Mounted Pump / Motor Assembly
- (8) Location Options for 1½” NPT Discharge
- (2) Location Options for 2” NPT Inlet
- Immediately Available for Quick Shipment
- Priced to Save You Money
- Interchangeable with Other Manufacturer’s Pump
- Parts / Service Kits in Stock (24 Hour Delivery)
